引言

在工业自动化领域，阀门作为最基础的控制元件之一，其可视化显示对于操作员监控系统运行状态至关重要。本文将详细介绍如何使用C#和GDI+技术开发一个功能强大、外观精美的阀门控件，该控件不仅性能优异，还支持高DPI显示和各种自定义选项。

控件特性概览

• 支持圆形和矩形（圆角可调）两种阀门形状
• 垂直和水平两种显示方向
• 可自定义开关状态颜色和文本
• 支持管道显示控制
• 高DPI显示支持
• 透明背景支持
• 事件驱动的状态变更机制

核心实现

1. 基础属性设计

控件的核心是一系列可自定义的属性，包括：

C#
private bool _isOpen = false;        // 阀门开关状态
private string _valveText = "阀门";   // 阀门显示文本
private Color _openColor = Color.Green;  // 开启颜色
private Color _closeColor = Color.Red;   // 关闭颜色
private ValveOrientation _orientation = ValveOrientation.Vertical; // 显示方向
private float _pipeWidth = 2f;       // 管道宽度
private Color _pipeColor = Color.Black;  // 管道颜色

2. 透明背景支持

为实现真正的透明效果，需要特别设置控件样式和重写相关方法：

C#
public ValveControl()
{
    SetStyle(ControlStyles.SupportsTransparentBackColor, true);
    SetStyle(ControlStyles.OptimizedDoubleBuffer, false);
    SetStyle(ControlStyles.AllPaintingInWmPaint, true);
    SetStyle(ControlStyles.UserPaint, true);
    SetStyle(ControlStyles.ResizeRedraw, true);
    SetStyle(ControlStyles.Opaque, false);

    this.BackColor = Color.Transparent;
}

protected override CreateParams CreateParams
{
    get
    {
        CreateParams cp = base.CreateParams;
        cp.ExStyle |= 0x20; // WS_EX_TRANSPARENT
        return cp;
    }
}

3. 高质量绘图实现

为确保控件在各种分辨率下都能完美显示，实现了高质量绘图模式：

C#
protected override void OnPaint(PaintEventArgs e)
{
    // 设置高质量绘图模式
    e.Graphics.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;
    e.Graphics.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
    e.Graphics.PixelOffsetMode = System.Drawing.Drawing2D.PixelOffsetMode.HighQuality;
    e.Graphics.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;

    // 使用双倍分辨率缓冲绘图
    using (var bmp = new Bitmap(this.Width * 2, this.Height * 2))
    {
        // ... 绘制代码 ...
    }
}

4. 完整代码实现

C#
using System;
using System.ComponentModel;
using System.Drawing;
using System.Drawing.Design;
using System.Windows.Forms;
using System.Windows.Forms.Design;

namespace AppControls
{
    // 形状枚举
    public enum ValveShape
    {
        Circle,
        Rectangle
    }
    public class ValveControl : Control
    {
        private bool _isOpen = false;
        private string _valveText = "阀门";
        private Color _openColor = Color.Green;
        private Color _closeColor = Color.Red;
        private ValveOrientation _orientation = ValveOrientation.Vertical;
        private float _pipeWidth = 2f;
        private Color _pipeColor = Color.Black;
        private bool _showFirstPipe = true;   // 第一根管道（上/左）显示控制
        private bool _showSecondPipe = true;  // 第二根管道（下/右）显示控制

        private bool _showStatus = true;   // 状态显示控制
        private string _openText = "开启";  // 开启状态文本
        private string _closeText = "关闭"; // 关闭状态文本
        // 形状字段
        private ValveShape _valveShape = ValveShape.Circle;
        private int _cornerRadius = 10;

        // 事件声明
        public event EventHandler ValveOpened;
        public event EventHandler ValveClosed;

        // 定义阀门方向的枚举
        public enum ValveOrientation
        {
            Horizontal,
            Vertical
        }

        // 第一根管道显示控制属性（上管道/左管道）
        [Description("显示第一根管道（垂直方向时为上管道，水平方向时为左管道）")]
        [DefaultValue(true)]
        public bool ShowFirstPipe
        {
            get { return _showFirstPipe; }
            set
            {
                _showFirstPipe = value;
                Invalidate();
            }
        }

        // 第二根管道显示控制属性（下管道/右管道）
        [Description("显示第二根管道（垂直方向时为下管道，水平方向时为右管道）")]
        [DefaultValue(true)]
        public bool ShowSecondPipe
        {
            get { return _showSecondPipe; }
            set
            {
                _showSecondPipe = value;
                Invalidate();
            }
        }

        // 管道宽度属性
        [Description("管道宽度")]
        [DefaultValue(2f)]
        public float PipeWidth
        {
            get { return _pipeWidth; }
            set
            {
                if (value > 0)
                {
                    _pipeWidth = value;
                    Invalidate();
                }
            }
        }

        // 管道颜色属性
        [Description("管道颜色")]
        public Color PipeColor
        {
            get { return _pipeColor; }
            set
            {
                _pipeColor = value;
                Invalidate();
            }
        }

        [Description("阀门显示方向")]
        public ValveOrientation Orientation
        {
            get { return _orientation; }
            set
            {
                _orientation = value;
                if (value == ValveOrientation.Vertical)
                {
                    this.Size = new Size(100, 150);
                }
                else
                {
                    this.Size = new Size(150, 100);
                }
                Invalidate();
            }
        }

        [Description("阀门状态")]
        public bool IsOpen
        {
            get { return _isOpen; }
            set
            {
                if (_isOpen != value)  // 只在状态确实发生改变时才触发事件
                {
                    _isOpen = value;
                    // 触发相应的事件
                    if (_isOpen)
                    {
                        OnValveOpened(EventArgs.Empty);
                    }
                    else
                    {
                        OnValveClosed(EventArgs.Empty);
                    }
                    Invalidate();
                }
            }
        }

        [Description("阀门显示文本")]
        public string ValveText
        {
            get { return _valveText; }
            set
            {
                _valveText = value;
                Invalidate();
            }
        }

        [Description("阀门打开时的颜色")]
        public Color OpenColor
        {
            get { return _openColor; }
            set
            {
                _openColor = value;
                Invalidate();
            }
        }

        [Description("阀门关闭时的颜色")]
        public Color CloseColor
        {
            get { return _closeColor; }
            set
            {
                _closeColor = value;
                Invalidate();
            }
        }

        [Description("是否显示阀门状态文本")]
        [DefaultValue(true)]
        public bool ShowStatus
        {
            get { return _showStatus; }
            set
            {
                _showStatus = value;
                Invalidate();
            }
        }

        [Description("阀门开启时显示的文本")]
        [DefaultValue("开启")]
        public string OpenText
        {
            get { return _openText; }
            set
            {
                _openText = value;
                if (_isOpen) Invalidate();
            }
        }

        [Description("阀门关闭时显示的文本")]
        [DefaultValue("关闭")]
        public string CloseText
        {
            get { return _closeText; }
            set
            {
                _closeText = value;
                if (!_isOpen) Invalidate();
            }
        }

        // 形状属性
        [Description("阀门形状")]
        [DefaultValue(ValveShape.Circle)]
        public ValveShape ValveShape
        {
            get { return _valveShape; }
            set
            {
                _valveShape = value;
                Invalidate();
            }
        }

        [Description("矩形模式下的圆角半径")]
        [DefaultValue(10)]
        public int CornerRadius
        {
            get { return _cornerRadius; }
            set
            {
                if (value >= 0)
                {
                    _cornerRadius = value;
                    Invalidate();
                }
            }
        }

        public ValveControl()
        {
            // 设置关键的控件样式
            SetStyle(ControlStyles.SupportsTransparentBackColor, true);
            SetStyle(ControlStyles.OptimizedDoubleBuffer, false);//这个影响透明
            SetStyle(ControlStyles.AllPaintingInWmPaint, true);
            SetStyle(ControlStyles.UserPaint, true);
            SetStyle(ControlStyles.ResizeRedraw, true);

            // 启用透明
            SetStyle(ControlStyles.Opaque, false);

            this.Size = new Size(100, 150);
            this.BackColor = Color.Transparent;
            this.Click += new EventHandler(ValveControl_Click);
        }

        // 重写这个方法来支持真正的透明
        protected override CreateParams CreateParams
        {
            get
            {
                CreateParams cp = base.CreateParams;
                cp.ExStyle |= 0x20; // WS_EX_TRANSPARENT
                return cp;
            }
        }

        protected override void OnPaintBackground(PaintEventArgs e)
        {
            // 不执行任何操作，保持背景透明
        }


        private void ValveControl_Click(object sender, EventArgs e)
        {
            IsOpen = !IsOpen;
        }

        protected override void OnPaint(PaintEventArgs e)
        {
            // 设置高质量绘图模式
            e.Graphics.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;
            e.Graphics.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
            e.Graphics.PixelOffsetMode = System.Drawing.Drawing2D.PixelOffsetMode.HighQuality;
            e.Graphics.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;

            // 使用高分辨率绘图
            using (var bmp = new Bitmap(this.Width * 2, this.Height * 2))
            {
                using (var tempG = Graphics.FromImage(bmp))
                {
                    // 设置高质量绘图模式
                    tempG.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;
                    tempG.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
                    tempG.PixelOffsetMode = System.Drawing.Drawing2D.PixelOffsetMode.HighQuality;
                    tempG.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;
                    tempG.ScaleTransform(2, 2); // 缩放以支持高DPI

                    // 计算绘制区域
                    Rectangle valveRect;
                    if (_orientation == ValveOrientation.Vertical)
                    {
                        valveRect = new Rectangle(
                            Width / 4,
                            Height / 4,
                            Width / 2,
                            Height / 2
                        );
                    }
                    else
                    {
                        valveRect = new Rectangle(
                            Width / 4,
                            Height / 4,
                            Width / 2,
                            Height / 2
                        );
                    }

                    // 绘制管道
                    using (Pen pipePen = new Pen(_pipeColor, _pipeWidth))
                    {
                        pipePen.EndCap = System.Drawing.Drawing2D.LineCap.Round;
                        pipePen.StartCap = System.Drawing.Drawing2D.LineCap.Round;
                        pipePen.LineJoin = System.Drawing.Drawing2D.LineJoin.Round;

                        if (_orientation == ValveOrientation.Vertical)
                        {
                            if (_showFirstPipe)
                            {
                                tempG.DrawLine(pipePen,
                                    new Point(Width / 2, 0),
                                    new Point(Width / 2, valveRect.Top));
                            }

                            if (_showSecondPipe)
                            {
                                tempG.DrawLine(pipePen,
                                    new Point(Width / 2, valveRect.Bottom),
                                    new Point(Width / 2, Height));
                            }
                        }
                        else
                        {
                            if (_showFirstPipe)
                            {
                                tempG.DrawLine(pipePen,
                                    new Point(0, Height / 2),
                                    new Point(valveRect.Left, Height / 2));
                            }

                            if (_showSecondPipe)
                            {
                                tempG.DrawLine(pipePen,
                                    new Point(valveRect.Right, Height / 2),
                                    new Point(Width, Height / 2));
                            }
                        }
                    }

                    // 绘制阀门主体
                    using (SolidBrush valveBrush = new SolidBrush(_isOpen ? _openColor : _closeColor))
                    using (Pen valvePen = new Pen(Color.Black, 2))
                    {
                        valvePen.EndCap = System.Drawing.Drawing2D.LineCap.Round;
                        valvePen.StartCap = System.Drawing.Drawing2D.LineCap.Round;
                        valvePen.LineJoin = System.Drawing.Drawing2D.LineJoin.Round;

                        if (_valveShape == ValveShape.Circle)
                        {
                            // 圆形阀门
                            tempG.FillEllipse(valveBrush, valveRect);
                            tempG.DrawEllipse(valvePen, valveRect);
                        }
                        else
                        {
                            // 矩形阀门（圆角）
                            using (var path = new System.Drawing.Drawing2D.GraphicsPath())
                            {
                                path.AddArc(valveRect.X, valveRect.Y, _cornerRadius * 2, _cornerRadius * 2, 180, 90);
                                path.AddArc(valveRect.Right - _cornerRadius * 2, valveRect.Y, _cornerRadius * 2, _cornerRadius * 2, 270, 90);
                                path.AddArc(valveRect.Right - _cornerRadius * 2, valveRect.Bottom - _cornerRadius * 2, _cornerRadius * 2, _cornerRadius * 2, 0, 90);
                                path.AddArc(valveRect.X, valveRect.Bottom - _cornerRadius * 2, _cornerRadius * 2, _cornerRadius * 2, 90, 90);
                                path.CloseFigure();

                                tempG.FillPath(valveBrush, path);
                                tempG.DrawPath(valvePen, path);
                            }
                        }
                    }

                    // 绘制文本
                    using (var textFont = new Font(this.Font.FontFamily, this.Font.Size, FontStyle.Regular, GraphicsUnit.Point))
                    using (var sf = new StringFormat())
                    {
                        sf.Alignment = StringAlignment.Center;
                        sf.LineAlignment = StringAlignment.Center;
                        sf.FormatFlags |= StringFormatFlags.NoWrap;

                        using (var textBrush = new SolidBrush(Color.Black))
                        {
                            // 使用TextRenderingHint.ClearTypeGridFit提高文本清晰度
                            tempG.TextRenderingHint = System.Drawing.Text.TextRenderingHint.ClearTypeGridFit;
                            tempG.DrawString(_valveText,
                                textFont,
                                textBrush,
                                valveRect,
                                sf);
                        }
                    }

                    // 绘制状态文本
                    if (_showStatus)
                    {
                        string status = _isOpen ? _openText : _closeText;
                        using (var smallFont = new Font(this.Font.FontFamily, 8, FontStyle.Regular, GraphicsUnit.Point))
                        using (var sf = new StringFormat())
                        {
                            sf.Alignment = StringAlignment.Center;
                            Rectangle statusRect;

                            if (_orientation == ValveOrientation.Vertical)
                            {
                                statusRect = new Rectangle(
                                    0,
                                    valveRect.Bottom + 5,
                                    Width,
                                    20
                                );
                            }
                            else
                            {
                                statusRect = new Rectangle(
                                    valveRect.Right + 5,
                                    0,
                                    (Width - valveRect.Right - 5),
                                    Height
                                );
                            }

                            tempG.TextRenderingHint = System.Drawing.Text.TextRenderingHint.ClearTypeGridFit;
                            tempG.DrawString(status,
                                smallFont,
                                Brushes.Black,
                                statusRect,
                                sf);
                        }
                    }

                    // 将高分辨率图像绘制到控件上
                    e.Graphics.DrawImage(bmp, 0, 0, this.Width, this.Height);
                }
            }
        }

        // 事件触发方法
        protected virtual void OnValveOpened(EventArgs e)
        {
            ValveOpened?.Invoke(this, e);
        }

        protected virtual void OnValveClosed(EventArgs e)
        {
            ValveClosed?.Invoke(this, e);
        }

    }
}

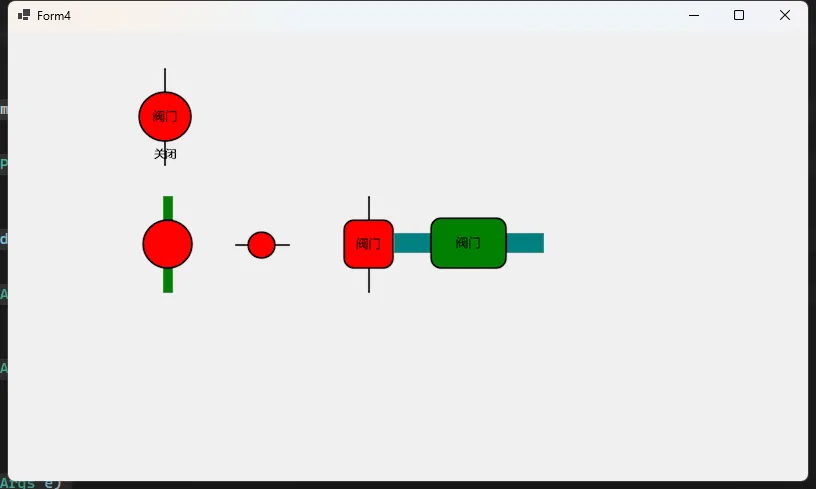

使用示例

结论

本文介绍的阀门控件实现了工控系统中常用的阀门可视化需求，具有良好的可定制性和性能表现。通过合理的代码架构和绘图优化，确保了控件在实际应用中的稳定性和效率。开发者可以基于此继续扩展，添加更多功能特性，以满足不同场景的需求。

这个控件的实现充分展示了C# GDI+在工控图形开发中的应用价值，为工控软件开发提供了一个很好的参考示例。
